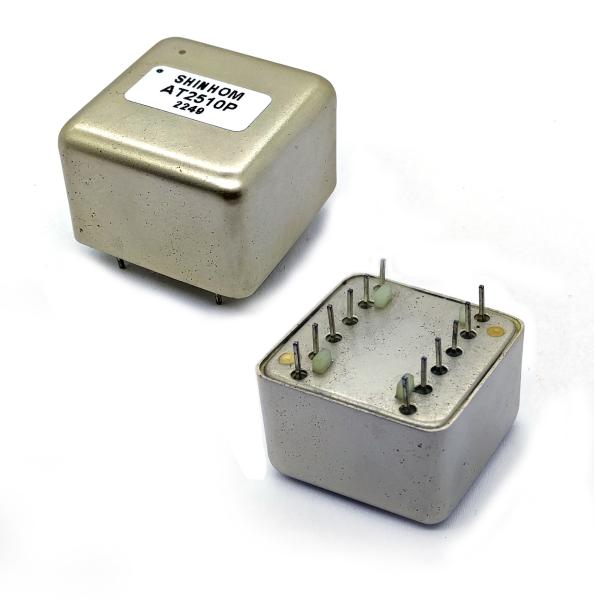

500Vac Microphone Splitter Transformer , AF Transformer Low Frequency

Name: 500Vac Microphone Splitter Transformer AF Transformer Low Frequency
Brand: Shinhom
Price: 1 USD

Buy cheap 500Vac Microphone Splitter Transformer , AF Transformer Low Frequency product

Brand Name : Shinhom

Model Number : AT2510P

Certification : ISO9001-2000, UL, ISO9001, CCC, CE

Place of Origin : China

MOQ : Negotiation

Price : Negotiation

Payment Terms : T/T

Supply Ability : 1000000/MONTH

Delivery Time : 4~8 Weeks

Packaging Details : Carton

Frequency : 50/60Hz

Application : Audio output transformer

Insulation : UL Insulation System for Class B (130), F (155), H (180)

Product name : Low frequency Transformer

Operating temperature : -25℃to+125℃

Contact Now

Microphone Split Transformer , AF Transformer

Features:

• Provides 2 additional, isolated balanced outputs as mic 'splitter'
• Stops 'ground loop' problems when a mic feeds multiple preamps
• High common-mode rejection: 130 dB at 60 Hz
• Excellent frequency response and time domain performance
• Low insertion loss: 1.2 dB

Application:

This transformer is designed for drive from a 150 Ω microphone source and for each secondary to be loaded by the 1 kΩ input impedance typical of microphone preamplifiers. A pair can be used to make a passive matrix when using the M-S stereo microphone technique. A 30 dB magnetic shield

Electrical specification:

Inductance: 12-11: 3.0H±20%@1KHz,0.3V
5-4: 3.0H±20%@1KHz,0.3V
8-7: 3.0H±20%@1KHz,0.3V
DCR: 12-11: 50Ω±15%
5-4: 51Ω±15%
8-7: 58Ω±15%
Hi-Pot: 500Vac,5mA,1S Pri to Sec
